Duplicate Columns Based on Cell Value in Excel

In Excel, you may sometimes need to duplicate entire columns based on a number specified in a cell. For example, repeating product columns, generating simulation datasets, or expanding structured templates. However, Excel does not provide a built-in feature to achieve this directly.

In this tutorial, we will show you two practical ways to achieve it: using VBA for a customizable but technical approach, and using Kutools for Excel for a much simpler and more efficient solution.

• Duplicate columns based on cell value using VBA
• Duplicate columns based on cell value using Kutools

Duplicate columns based on cell value using VBA

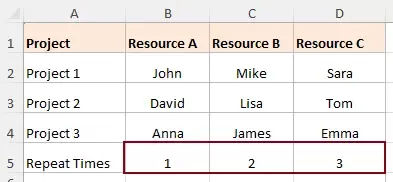

If you are familiar with automation, VBA can help you duplicate columns according to a specified value. This method works by reading the value in a specific row (such as the last row of each column) and then duplicating each column accordingly.

Steps to duplicate columns using VBA

1. Open the worksheet where you want to duplicate columns.
2. Press Alt + F11 to open the VBA editor.

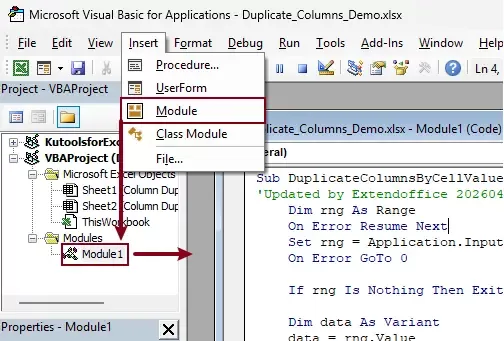

3. Click Insert > Module to create a new module.
4. Copy and paste the following VBA code into the module window.
   VBA code: Duplicate columns based on cell value

   Sub DuplicateColumnsByCellValue()
   'Updated by Extendoffice 20260420
       Dim rng As Range
       On Error Resume Next
       Set rng = Application.InputBox("Select the range:", "Kutools for Excel", Selection.Address, Type:=8)
       On Error GoTo 0

       If rng Is Nothing Then Exit Sub

       Dim lastRow As Long
       lastRow = rng.Rows.Count

       Dim j As Long, k As Long
       Dim repeatCount As Long

       Application.ScreenUpdating = False

       ' Loop from right to left (very important)
       For j = rng.Columns.Count To 1 Step -1

           repeatCount = rng.Cells(lastRow, j).Value

           If IsNumeric(repeatCount) And repeatCount >= 1 Then

               ' Duplicate N times (original + N copies)
               For k = 1 To repeatCount
                   rng.Columns(j).EntireColumn.Copy
                   rng.Columns(j + 1).EntireColumn.Insert Shift:=xlToRight
               Next k

           End If

       Next j

       Application.CutCopyMode = False
       Application.ScreenUpdating = True

       MsgBox "Columns duplicated successfully.", vbInformation, "Kutools for Excel"
   End Sub



5. Press F5 to run the code.

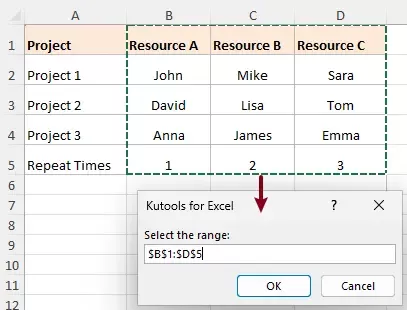

6. In the pop-up dialog, select your data range (including the row that contains the repeat numbers). Click OK to execute.



Result

After running the VBA code, each column is duplicated according to the number specified in the last row, while the original column is always preserved. A confirmation dialog box will then appear, indicating that the duplication process has been completed successfully.

• A value of 1 means the column appears twice (original + 1 copy).
• A value of 2 means the column appears three times (original + 2 copies).

All duplicated columns are inserted in sequence within the original range, forming a newly expanded dataset. The relative order of columns is maintained, and the data structure remains consistent across all rows.

This method rebuilds the entire column layout in place, ensuring the final result matches the expected duplication pattern without requiring manual adjustments.

Limitations of VBA method

While VBA works, it comes with several drawbacks:

• Requires enabling macros (security concerns).
• Not beginner-friendly.
• Difficult to modify or debug.
• Risk of errors in large datasets.
• The original cell formatting (such as fill color, borders, and styles) will be lost after running the VBA code.

Easily duplicate columns based on cell value with Kutools for Excel

Instead of dealing with complex code, Kutools for Excel provides a dedicated feature to handle this task in just a few clicks. It allows you to duplicate columns automatically based on a specified cell value—no formulas or coding required.

Steps to duplicate columns with Kutools

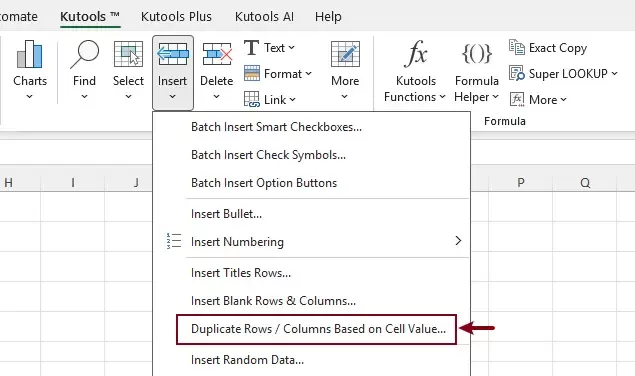

1. After installing Kutools for Excel, click Kutools > Insert > Duplicate Rows/Columns Based on Cell Value.

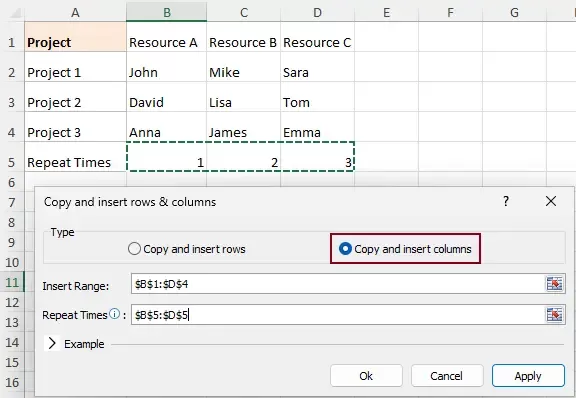

2. In the dialog box:
   1. Select Copy and insert columns.
   2. Select the Insert Range (data to duplicate)
   3. In Repeat Times, select the cells that contain the number of repetitions (e.g., the last row).
   4. Click OK.



Result

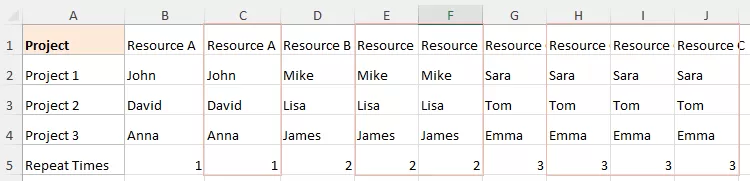

Each column is duplicated based on its corresponding value, with the new columns inserted immediately next to the original ones. Throughout the process, all formatting and the overall data structure are preserved automatically, ensuring a consistent and seamless result.

Why Kutools is the best solution

Compared with VBA, Kutools offers significant advantages:

• No coding required – perfect for all users.
• Simple steps with a dialog-based interface – no complex setup needed.
• Clear visual interface – easy to understand.
• Safe and reliable – no macro risks.
• Maintains all original formatting, including colors, borders, and cell styles.
• Handles large datasets efficiently.

It turns a complex task into a simple, repeatable workflow.

If you need to duplicate rows instead, Kutools also provides a "Copy and insert rows" option for the same task.

Conclusion

Duplicating columns based on cell values is not something Excel can do natively. While VBA provides a possible workaround, it requires technical knowledge and comes with limitations.

Kutools for Excel, on the other hand, offers a fast, intuitive, and error-free solution that works for users of all levels. If you frequently need to manipulate structured data or automate repetitive tasks, Kutools is undoubtedly the better choice.
